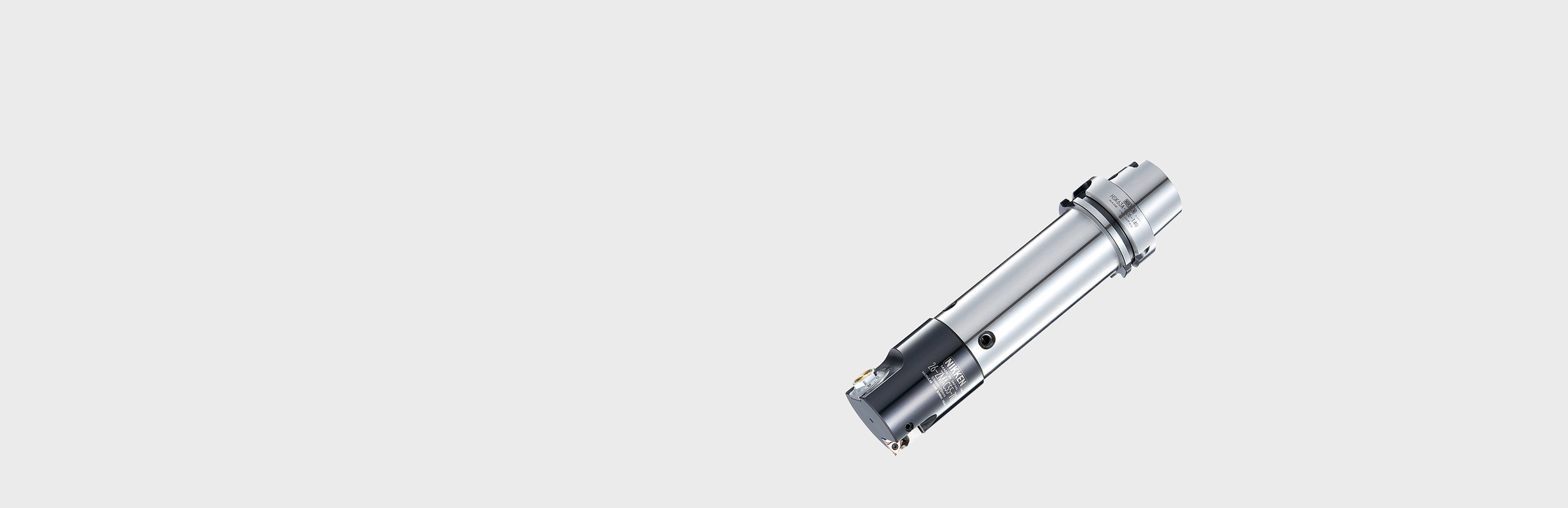

NIKKEN ZMAC Modüler delik işleme serisi, herhangi bir yarı hassas ve hassas işleme için harika performans sağlar.

Özel NIKKEN seçilmiş kesici uç seçenekleri ve kalitelerinde mevcut olan her gereksinimi karşılamak için iki farklı çözümümüz vardır:

  • NIKKEN MP/MS - Hassas işleme için üçgen uç geometrisi ve yuvası.
  • NIKKEN CC - Yarı hassas işleme için parelel kenar uç geometrisi ve yuvası.

Ayrıca, bir üçüncü seçenek uç tercih edildiğinde, daha standart uca uyması için kartuş ISO uç yuvalı olarak NIKKEN ZMAC Gelişmiş seçeneğimiz mevcuttur.

ZMAC bizim en iyi delik işleme çözümümüzdür - Rakip delik işleme kartuşlarının aksine, tüm hareket mesafesinde uç taşıyıcıyı tam olarak desteklemek için tasarlanmış son derece sağlam bir çift temas desteğine sahiptir.

Sabitleme cıvatası, herhangi bir sapma olasılığını ve önceden ayarlanmış ölçüm varyasyonunu bozmaması için ayar vidasına tam olarak 90 derecede uygulanır.

ZMAC, dahili olarak taşlanmış bir dişe sahip ve 800 HV değerinde özel ısıl işlem görmüş hassas dereceli mikron kadran halkası kullanılarak yapılmıştır. Bu, aynı zamanda sertleştirilmiş ve HRC50-55 ile ısıl işleme tabi tutulmuş hassas taşlanmış kartuş dişiyle eşleştirilmiştir.

ZMAC Başlığı standart olarak merkezi soğutucu akışkan deliğine sahiptir; bu da soğutucuyu bara ve herhangi bir uzatma içinden, optimum soğutma sağlamak amacı ile kesme ucunun hemen üzerine getirir.

Montajlı ağırlığını azaltmak ve daha yüksek dönüş hızlarında çalışmak için ZMAC Alpha seçeneğimiz mevcuttur. Bu, özel sertleştirilmiş hafif alaşımlı malzemeden yapılmıştır ve titreşim gidermek için özel bir iç denge sistemine sahiptir.

Takım sapına bağlı olarak standart modüler ZMAC ve ZMAC Alpha (ZMAC25'den) delik işleme başlıklarımız 10 boyda mevcuttur:

  • ZMAC16 - 15.9mm ile 20.2mm arası delik ölçüleri için
  • ZMAC20 - 19.8mm to 25.2mm arası delik ölçüleri için
  • ZMAC25 - 24.8mm to 32.2mm arası delik ölçüleri için
  • ZMAC32 - 31.8mm to 42.2mm arası delik ölçüleri için
  • ZMAC42 - 41.8mm to 55.2mm arası delik ölçüleri için
  • ZMAC55 - 54.8mm to 70.2mm arası delik ölçüleri için
  • ZMAC70 - 69.8mm to 85.2mm arası delik ölçüleri için
  • ZMAC85 - 84.8mm to 100.2mm arası delik ölçüleri için
  • ZMAC100 - 99.5mm to 140.5mm arası delik ölçüleri için
  • ZMAC140 - 139.5mm to 180.5mm arası delik ölçüleri için

  • Basit mikron ayarıyla yüksek hassasiyet

  • Daha yüksek hızlar için hafif alaşım

  • Eşsiz çift temas desteği

DELİK İŞLEME BROŞÜRÜ

(PDF - 70.4 MB)

Mevcut Boyutlar ve Kapasiteler

SAP DELİK İŞLEME ARBORU UZATICI / LEVHA KAFA / KARTUŞ / BIT ÇAP 'D' MIN ÇAP 'D' MAX DELİK İŞLEME DERİNLİĞİ 'H' EKLE UYGULAMA
BT40-Q12-110 + ~ + 12-ZMAC25-40AAV BT40 BT40-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
BT40-Q12-110 + ~ + 12-ZMAC25-40V BT40 BT40-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
BT40-Q12-80 + ~ + 12-ZMAC16-45AAV BT40 BT40-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-45V BT40 BT40-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-55AAV BT40 BT40-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC16-55V BT40 BT40-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC25-40AAV BT40 BT40-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + ~ + 12-ZMAC25-40V BT40 BT40-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV BT40 BT40-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole grinding
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V BT40 BT40-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
BT40-Q16-125 + ~ + 16-ZMAC32-55AAV BT40 BT40-Q16-125 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole grinding
BT40-Q16-125 + ~ + 16-ZMAC32-55V BT40 BT40-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
BT40-Q16-125 + ~ + 16-ZMAC32R-55AAV BT40 BT40-Q16-125 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
BT40-Q16-125 + ~ + 16-ZMAC32R-55V BT40 BT40-Q16-125 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
BT40-Q16-95 + ~ + 16-ZMAC32-55AAV BT40 BT40-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
BT40-Q16-95 + ~ + 16-ZMAC32-55V BT40 BT40-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
BT40-Q16-95 + ~ + 16-ZMAC32R-55AAV BT40 BT40-Q16-95 ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
BT40-Q16-95 + ~ + 16-ZMAC32R-55V BT40 BT40-Q16-95 ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V BT40 BT40-Q16-95 SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
BT40-Q20-110 + ~ + 20-ZMAC42-70AAV BT40 BT40-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
BT40-Q20-110 + ~ + 20-ZMAC42-70V BT40 BT40-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
BT40-Q20-110 + ~ + 20-ZMAC42R-70AAV BT40 BT40-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
BT40-Q20-110 + ~ + 20-ZMAC42R-70V BT40 BT40-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
BT40-Q20-80 + ~ + 20-ZMAC42-70AAV BT40 BT40-Q20-80 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
BT40-Q20-80 + ~ + 20-ZMAC42-70V BT40 BT40-Q20-80 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
BT40-Q20-80 + ~ + 20-ZMAC42R-70AAV BT40 BT40-Q20-80 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
BT40-Q20-80 + ~ + 20-ZMAC42R-70V BT40 BT40-Q20-80 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V BT40 BT40-Q20-80 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
BT40-Q26-140 + ~ + 26-ZMAC55-70AAV BT40 BT40-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 180.0 6MP High speeds / deep hole drilling
BT40-Q26-140 + ~ + 26-ZMAC55-70V BT40 BT40-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 180.0 6MP Finishing
BT40-Q26-140 + ~ + 26-ZMAC55R-70AAV BT40 BT40-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 180.0 CC06 High speeds / deep hole drilling
BT40-Q26-140 + ~ + 26-ZMAC55R-70V BT40 BT40-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 180.0 CC06 Finishing
BT40-Q26-95 + ~ + 26-ZMAC55-70AAV BT40 BT40-Q26-95 ~ 26-ZMAC55-70AAV 54.8 70.2 135.0 6MP High speeds / deep hole drilling
BT40-Q26-95 + ~ + 26-ZMAC55-70V BT40 BT40-Q26-95 ~ 26-ZMAC55-70V 54.8 70.2 135.0 6MP Finishing
BT40-Q26-95 + ~ + 26-ZMAC55R-70AAV BT40 BT40-Q26-95 ~ 26-ZMAC55R-70AAV 54.8 70.2 135.0 CC06 High speeds / deep hole drilling
BT40-Q26-95 + ~ + 26-ZMAC55R-70V BT40 BT40-Q26-95 ~ 26-ZMAC55R-70V 54.8 70.2 135.0 CC06 Finishing
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 195.0 6MP High speeds / deep hole drilling
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55-70V 54.8 70.2 195.0 6MP Finishing
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 195.0 CC06 High speeds / deep hole drilling
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V BT40 BT40-Q26-95 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 195.0 CC06 Finishing
BT40-Q34-110 + ~ + 34-ZMAC70-70AAV BT40 BT40-Q34-110 ~ 34-ZMAC70-70AAV 69.8 85.2 180.0 6MP High speeds / deep hole drilling
BT40-Q34-110 + ~ + 34-ZMAC70-70V BT40 BT40-Q34-110 ~ 34-ZMAC70-70V 69.8 85.2 180.0 6MP Finishing
BT40-Q34-110 + ~ + 34-ZMAC70R-70AAV BT40 BT40-Q34-110 ~ 34-ZMAC70R-70AAV 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
BT40-Q34-110 + ~ + 34-ZMAC70R-70V BT40 BT40-Q34-110 ~ 34-ZMAC70R-70V 69.8 85.2 180.0 CC08 Finishing
BT40-Q34-95 + ~ + 34-ZMAC70-70AAV BT40 BT40-Q34-95 ~ 34-ZMAC70-70AAV 69.8 85.2 165.0 6MP High speeds / deep hole drilling
BT40-Q34-95 + ~ + 34-ZMAC70-70V BT40 BT40-Q34-95 ~ 34-ZMAC70-70V 69.8 85.2 165.0 6MP Finishing
BT40-Q34-95 + ~ + 34-ZMAC70R-70AAV BT40 BT40-Q34-95 ~ 34-ZMAC70R-70AAV 69.8 85.2 165.0 CC08 High speeds / deep hole drilling
BT40-Q34-95 + ~ + 34-ZMAC70R-70V BT40 BT40-Q34-95 ~ 34-ZMAC70R-70V 69.8 85.2 165.0 CC08 Finishing
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70R-70AAV 69.8 85.2 225.0 CC08 High speeds / deep hole drilling
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V BT40 BT40-Q34-95 SP34-34-95 34-ZMAC70R-70V 69.8 85.2 225.0 CC08 Finishing
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV BT50 BT40-Q42-125 SP42-42-90 42-ZMAC85-100AAV 84.8 100.2 272.0 6MP High speeds / deep hole drilling
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V BT50 BT40-Q42-125 SP42-42-90 42-ZMAC85-100V 84.8 100.2 272.0 6MP Finishing
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV BT40 BT40-Q42-125 SP42-42-90 42-ZMAC85R-100AAV 84.8 100.2 272.0 CC08 High speeds / deep hole drilling
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V BT40 BT40-Q42-125 SP42-42-90 42-ZMAC85R-100V 84.8 100.2 272.0 CC08 Finishing
BT40-Q42-95 + ~ + 42-ZMAC85-100AAV BT40 BT40-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
BT40-Q42-95 + ~ + 42-ZMAC85-100V BT40 BT40-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
BT40-Q42-95 + ~ + 42-ZMAC85R-100AAV BT40 BT40-Q42-95 ~ 42-ZMAC85R-100AAV 84.8 100.2 195.0 CC08 High speeds / deep hole drilling
BT40-Q42-95 + ~ + 42-ZMAC85R-100V BT40 BT40-Q42-95 ~ 42-ZMAC85R-100V 84.8 100.2 195.0 CC08 Finishing
BT40-Q9-80 + ~ + 9-ZMAC20-40AAV BT40 BT40-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
BT40-Q9-80 + ~ + 9-ZMAC20-40V BT40 BT40-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV BT40 BT40-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V BT40 BT40-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
BT40-Q9-95N + ~ + 9-ZMAC20-40AAV BT40 BT40-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
BT40-Q9-95N + ~ + 9-ZMAC20-40V BT40 BT40-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
BT50-Q12-125 + ~ + 12-ZMAC25-40AAV BT50 BT50-Q12-125 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
BT50-Q12-125 + ~ + 12-ZMAC25-40V BT50 BT50-Q12-125 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC16-45AAV BT50 BT50-Q12-95 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC16-45V BT50 BT50-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC16-55AAV BT50 BT50-Q12-95 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC16-55V BT50 BT50-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
BT50-Q12-95 + ~ + 12-ZMAC25-40AAV BT50 BT50-Q12-95 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + ~ + 12-ZMAC25-40V BT50 BT50-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV BT50 BT50-Q12-95 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V BT50 BT50-Q12-95 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
BT50-Q16-125N + ~ + 16-ZMAC32-55AAV BT50 BT50-Q16-125N ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
BT50-Q16-125N + ~ + 16-ZMAC32-55V BT50 BT50-Q16-125N ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
BT50-Q16-125N + ~ + 16-ZMAC32R-55AAV BT50 BT50-Q16-125N ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
BT50-Q16-125N + ~ + 16-ZMAC32R-55V BT50 BT50-Q16-125N ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55AAV BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V BT50 BT50-Q16-125N SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
BT50-Q16-155 + ~ + 16-ZMAC32-55AAV BT50 BT50-Q16-155 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
BT50-Q16-155 + ~ + 16-ZMAC32-55V BT50 BT50-Q16-155 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
BT50-Q16-155 + ~ + 16-ZMAC32R-55AAV BT50 BT50-Q16-155 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
BT50-Q16-155 + ~ + 16-ZMAC32R-55V BT50 BT50-Q16-155 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
BT50-Q20-110 + ~ + 20-ZMAC42-70AAV BT50 BT50-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + ~ + 20-ZMAC42-70V BT50 BT50-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
BT50-Q20-110 + ~ + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + ~ + 20-ZMAC42R-70V BT50 BT50-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42-70AAV 41.8 55.2 142.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42-70V 41.8 55.2 142.0 6MP Finishing
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42R-70AAV 41.8 55.2 142.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V BT50 BT50-Q20-110 SP20-20-45 20-ZMAC42R-70V 41.8 55.2 142.0 CC06 Finishing
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70AAV BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V BT50 BT50-Q20-110 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
BT50-Q20-125 + ~ + 20-ZMAC42-70AAV BT50 BT50-Q20-125 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
BT50-Q20-125 + ~ + 20-ZMAC42-70V BT50 BT50-Q20-125 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
BT50-Q20-125 + ~ + 20-ZMAC42R-70AAV BT50 BT50-Q20-125 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
BT50-Q20-125 + ~ + 20-ZMAC42R-70V BT50 BT50-Q20-125 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
BT50-Q26-140 + ~ + 26-ZMAC55-70AAV BT50 BT50-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 117.0 6MP High speeds / deep hole drilling
BT50-Q26-140 + ~ + 26-ZMAC55-70V BT50 BT50-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 117.0 6MP Finishing
BT50-Q26-140 + ~ + 26-ZMAC55R-70AAV BT50 BT50-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 117.0 CC06 High speeds / deep hole drilling
BT50-Q26-140 + ~ + 26-ZMAC55R-70V BT50 BT50-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 117.0 CC06 Finishing
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 177.0 6MP High speeds / deep hole drilling
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70AAV BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 177.0 CC06 High speeds / deep hole drilling
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V BT50 BT50-Q26-140 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 177.0 CC06 Finishing
BT50-Q26-170N + ~ + 26-ZMAC55-70AAV BT50 BT50-Q26-170N ~ 26-ZMAC55-70AAV 54.8 70.2 182.0 6MP High speeds / deep hole drilling
BT50-Q26-170N + ~ + 26-ZMAC55-70V BT50 BT50-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
BT50-Q26-170N + ~ + 26-ZMAC55R-70AAV BT50 BT50-Q26-170N ~ 26-ZMAC55R-70AAV 54.8 70.2 182.0 CC06 High speeds / deep hole drilling
BT50-Q26-170N + ~ + 26-ZMAC55R-70V BT50 BT50-Q26-170N ~ 26-ZMAC55R-70V 54.8 70.2 182.0 CC06 Finishing
BT50-Q34-170 + ~ + 34-ZMAC70-70AAV BT50 BT50-Q34-170 ~ 34-ZMAC70-70AAV 69.8 85.2 190.0 6MP High speeds / deep hole drilling
BT50-Q34-170 + ~ + 34-ZMAC70-70V BT50 BT50-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
BT50-Q34-170 + ~ + 34-ZMAC70R-70AAV BT50 BT50-Q34-170 ~ 34-ZMAC70R-70AAV 69.8 85.2 190.0 CC08 High speeds / deep hole drilling
BT50-Q34-170 + ~ + 34-ZMAC70R-70V BT50 BT50-Q34-170 ~ 34-ZMAC70R-70V 69.8 85.2 190.0 CC08 Finishing
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70-70AAV 69.8 85.2 250.0 6MP High speeds / deep hole drilling
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70-70V 69.8 85.2 250.0 6MP Finishing
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70R-70AAV 69.8 85.2 250.0 CC08 High speeds / deep hole drilling
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V BT50 BT50-Q34-170 SP34-34-60 34-ZMAC70R-70V 69.8 85.2 250.0 CC08 Finishing
BT50-Q34-200 + ~ + 34-ZMAC70-70AAV BT50 BT50-Q34-200 ~ 34-ZMAC70-70AAV 69.8 85.2 220.0 6MP High speeds / deep hole drilling
BT50-Q34-200 + ~ + 34-ZMAC70-70V BT50 BT50-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
BT50-Q34-200 + ~ + 34-ZMAC70R-70AAV BT50 BT50-Q34-200 ~ 34-ZMAC70R-70AAV 69.8 85.2 220.0 CC08 High speeds / deep hole drilling
BT50-Q34-200 + ~ + 34-ZMAC70R-70V BT50 BT50-Q34-200 ~ 34-ZMAC70R-70V 69.8 85.2 220.0 CC08 Finishing
BT50-Q42-125 + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC100-100AAV 99.5 140.5 225.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC100-100V BT50 BT50-Q42-125 ~ 42-ZMAC100-100V 99.5 140.5 225.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC100R-100AAV 99.5 140.5 225.0 CC12 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-125 ~ 42-ZMAC100R-100V 99.5 140.5 225.0 CC12 Finishing
BT50-Q42-125 + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC140-100AAV 139.5 180.5 225.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC140-100V BT50 BT50-Q42-125 ~ 42-ZMAC140-100V 139.5 180.5 225.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC140R-100AAV 139.5 180.5 225.0 CC12 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-125 ~ 42-ZMAC140R-100V 139.5 180.5 225.0 CC12 Finishing
BT50-Q42-125 + ~ + 42-ZMAC85-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC85-100AAV 84.8 100.2 182.0 6MP High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC85-100V BT50 BT50-Q42-125 ~ 42-ZMAC85-100V 84.8 100.2 182.0 6MP Finishing
BT50-Q42-125 + ~ + 42-ZMAC85R-100AAV BT50 BT50-Q42-125 ~ 42-ZMAC85R-100AAV 84.8 100.2 182.0 CC08 High speeds / deep hole drilling
BT50-Q42-125 + ~ + 42-ZMAC85R-100V BT50 BT50-Q42-125 ~ 42-ZMAC85R-100V 84.8 100.2 182.0 CC08 Finishing
BT50-Q42-190 + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC100-100AAV 99.5 140.5 290.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC100-100V BT50 BT50-Q42-190 ~ 42-ZMAC100-100V 99.5 140.5 290.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC100R-100AAV 99.5 140.5 290.0 CC12 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-190 ~ 42-ZMAC100R-100V 99.5 140.5 290.0 CC12 Finishing
BT50-Q42-190 + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC140-100AAV 139.5 180.5 290.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC140-100V BT50 BT50-Q42-190 ~ 42-ZMAC140-100V 139.5 180.5 290.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC140R-100AAV 139.5 180.5 290.0 CC12 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-190 ~ 42-ZMAC140R-100V 139.5 180.5 290.0 CC12 Finishing
BT50-Q42-190 + ~ + 42-ZMAC85-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC85-100AAV 84.8 100.2 247.0 6MP High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC85-100V BT50 BT50-Q42-190 ~ 42-ZMAC85-100V 84.8 100.2 247.0 6MP Finishing
BT50-Q42-190 + ~ + 42-ZMAC85R-100AAV BT50 BT50-Q42-190 ~ 42-ZMAC85R-100AAV 84.8 100.2 247.0 CC08 High speeds / deep hole drilling
BT50-Q42-190 + ~ + 42-ZMAC85R-100V BT50 BT50-Q42-190 ~ 42-ZMAC85R-100V 84.8 100.2 247.0 CC08 Finishing
BT50-Q42-225A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC100-100AAV 99.5 140.5 325.0 6MP High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-225A ~ 42-ZMAC100-100V 99.5 140.5 325.0 6MP Finishing
BT50-Q42-225A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC100R-100AAV 99.5 140.5 325.0 CC12 High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-225A ~ 42-ZMAC100R-100V 99.5 140.5 325.0 CC12 Finishing
BT50-Q42-225A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC140-100AAV 139.5 180.5 325.0 6MP High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-225A ~ 42-ZMAC140-100V 139.5 180.5 325.0 6MP Finishing
BT50-Q42-225A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-225A ~ 42-ZMAC140R-100AAV 139.5 180.5 325.0 CC12 High speeds / deep hole drilling
BT50-Q42-225A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-225A ~ 42-ZMAC140R-100V 139.5 180.5 325.0 CC12 Finishing
BT50-Q42-275A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC100-100AAV 99.5 140.5 375.0 6MP High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-275A ~ 42-ZMAC100-100V 99.5 140.5 375.0 6MP Finishing
BT50-Q42-275A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC100R-100AAV 99.5 140.5 375.0 CC12 High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-275A ~ 42-ZMAC100R-100V 99.5 140.5 375.0 CC12 Finishing
BT50-Q42-275A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC140-100AAV 139.5 180.5 375.0 6MP High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-275A ~ 42-ZMAC140-100V 139.5 180.5 375.0 6MP Finishing
BT50-Q42-275A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-275A ~ 42-ZMAC140R-100AAV 139.5 180.5 375.0 CC12 High speeds / deep hole drilling
BT50-Q42-275A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-275A ~ 42-ZMAC140R-100V 139.5 180.5 375.0 CC12 Finishing
BT50-Q42-325A + ~ + 42-ZMAC100-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC100-100AAV 99.5 140.5 425.0 6MP High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC100-100V BT50 BT50-Q42-325A ~ 42-ZMAC100-100V 99.5 140.5 425.0 6MP Finishing
BT50-Q42-325A + ~ + 42-ZMAC100R-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC100R-100AAV 99.5 140.5 425.0 CC12 High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC100R-100V BT50 BT50-Q42-325A ~ 42-ZMAC100R-100V 99.5 140.5 425.0 CC12 Finishing
BT50-Q42-325A + ~ + 42-ZMAC140-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC140-100AAV 139.5 180.5 425.0 6MP High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC140-100V BT50 BT50-Q42-325A ~ 42-ZMAC140-100V 139.5 180.5 425.0 6MP Finishing
BT50-Q42-325A + ~ + 42-ZMAC140R-100AAV BT50 BT50-Q42-325A ~ 42-ZMAC140R-100AAV 139.5 180.5 425.0 CC12 High speeds / deep hole drilling
BT50-Q42-325A + ~ + 42-ZMAC140R-100V BT50 BT50-Q42-325A ~ 42-ZMAC140R-100V 139.5 180.5 425.0 CC12 Finishing
BT50-Q9-110 + ~ + 9-ZMAC20-40AAV BT50 BT50-Q9-110 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
BT50-Q9-110 + ~ + 9-ZMAC20-40V BT50 BT50-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV BT50 BT50-Q9-110 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V BT50 BT50-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
BT50-Q9-125N + ~ + 9-ZMAC20-40AAV BT50 BT50-Q9-125N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
BT50-Q9-125N + ~ + 9-ZMAC20-40V BT50 BT50-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
HSK100A-Q12-125 + ~ + 12-ZMAC25-40V HSK100A HSK100A-Q12-125 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC16-45V HSK100A HSK100A-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC16-55V HSK100A HSK100A-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
HSK100A-Q12-95 + ~ + 12-ZMAC25-40V HSK100A HSK100A-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
HSK100A-Q26-140 + SP26-26-60 + 26-ZMAC55-70V HSK100A HSK100A-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
HSK100A-Q26-170N + ~ + 26-ZMAC55-70V HSK100A HSK100A-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
HSK100A-Q34-170 + ~ + 34-ZMAC70-70V HSK100A HSK100A-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
HSK100A-Q34-200 + ~ + 34-ZMAC70-70V HSK100A HSK100A-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
HSK100A-Q9-110 + ~ + 9-ZMAC20-40V HSK100A HSK100A-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
HSK100A-Q9-110 + SP9-9-30 + 9-ZMAC20-40V HSK100A HSK100A-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
HSK100A-Q9-125N + ~ + 9-ZMAC20-40V HSK100A HSK100A-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
HSK63A-Q12-110 + ~ + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
HSK63A-Q12-110 + ~ + 12-ZMAC25-40V HSK63A HSK63A-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC16-45AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC16-45V HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC16-55AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC16-55V HSK63A HSK63A-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
HSK63A-Q12-80 + ~ + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + ~ + 12-ZMAC25-40V HSK63A HSK63A-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV HSK63A HSK63A-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40V HSK63A HSK63A-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
HSK63A-Q16-125 + ~ + 16-ZMAC32-55V HSK63A HSK63A-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
HSK63A-Q16-95 + ~ + 16-ZMAC32-55AAV HSK63A HSK63A-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
HSK63A-Q16-95 + ~ + 16-ZMAC32-55V HSK63A HSK63A-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV HSK63A HSK63A-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70V HSK63A HSK63A-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
HSK63A-Q42-95 + ~ + 42-ZMAC85-100AAV HSK63A HSK63A-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
HSK63A-Q42-95 + ~ + 42-ZMAC85-100V HSK63A HSK63A-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
HSK63A-Q9-80 + ~ + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
HSK63A-Q9-80 + ~ + 9-ZMAC20-40V HSK63A HSK63A-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40V HSK63A HSK63A-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
HSK63A-Q9-95N + ~ + 9-ZMAC20-40AAV HSK63A HSK63A-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
HSK63A-Q9-95N + ~ + 9-ZMAC20-40V HSK63A HSK63A-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
IT40-Q12-110 + ~ + 12-ZMAC25-40AAV IT40 IT40-Q12-110 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
IT40-Q12-110 + ~ + 12-ZMAC25-40V IT40 IT40-Q12-110 ~ 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC16-45AAV IT40 IT40-Q12-80 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC16-45V IT40 IT40-Q12-80 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC16-55AAV IT40 IT40-Q12-80 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC16-55V IT40 IT40-Q12-80 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
IT40-Q12-80 + ~ + 12-ZMAC25-40AAV IT40 IT40-Q12-80 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + ~ + 12-ZMAC25-40V IT40 IT40-Q12-80 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV IT40 IT40-Q12-80 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V IT40 IT40-Q12-80 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
IT40-Q16-125 + ~ + 16-ZMAC32-55AAV IT40 IT40-Q16-125 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
IT40-Q16-125 + ~ + 16-ZMAC32-55V IT40 IT40-Q16-125 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
IT40-Q16-125 + ~ + 16-ZMAC32R-55AAV IT40 IT40-Q16-125 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
IT40-Q16-125 + ~ + 16-ZMAC32R-55V IT40 IT40-Q16-125 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
IT40-Q16-95 + ~ + 16-ZMAC32-55AAV IT40 IT40-Q16-95 ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
IT40-Q16-95 + ~ + 16-ZMAC32-55V IT40 IT40-Q16-95 ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
IT40-Q16-95 + ~ + 16-ZMAC32R-55AAV IT40 IT40-Q16-95 ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
IT40-Q16-95 + ~ + 16-ZMAC32R-55V IT40 IT40-Q16-95 ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32R-55AAV 31.8 42.2 122.0 CC06 High speeds / deep hole drilling
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V IT40 IT40-Q16-95 SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
IT40-Q20-110 + ~ + 20-ZMAC42-70AAV IT40 IT40-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
IT40-Q20-110 + ~ + 20-ZMAC42-70V IT40 IT40-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
IT40-Q20-110 + ~ + 20-ZMAC42R-70AAV IT40 IT40-Q20-110 ~ 20-ZMAC42R-70AAV 41.8 55.2 130.0 CC06 High speeds / deep hole drilling
IT40-Q20-110 + ~ + 20-ZMAC42R-70V IT40 IT40-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
IT40-Q20-80 + ~ + 20-ZMAC42-70AAV IT40 IT40-Q20-80 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
IT40-Q20-80 + ~ + 20-ZMAC42-70V IT40 IT40-Q20-80 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
IT40-Q20-80 + ~ + 20-ZMAC42R-70AAV IT40 IT40-Q20-80 ~ 20-ZMAC42R-70AAV 41.8 55.2 97.0 CC06 High speeds / deep hole drilling
IT40-Q20-80 + ~ + 20-ZMAC42R-70V IT40 IT40-Q20-80 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42R-70AAV 41.8 55.2 157.0 CC06 High speeds / deep hole drilling
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V IT40 IT40-Q20-80 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
IT40-Q26-140 + ~ + 26-ZMAC55-70AAV IT40 IT40-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 180.0 6MP High speeds / deep hole drilling
IT40-Q26-140 + ~ + 26-ZMAC55-70V IT40 IT40-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 180.0 6MP Finishing
IT40-Q26-140 + ~ + 26-ZMAC55R-70AAV IT40 IT40-Q26-140 ~ 26-ZMAC55R-70AAV 54.8 70.2 180.0 CC06 High speeds / deep hole drilling
IT40-Q26-140 + ~ + 26-ZMAC55R-70V IT40 IT40-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 180.0 CC06 Finishing
IT40-Q26-95 + ~ + 26-ZMAC55-70AAV IT40 IT40-Q26-95 ~ 26-ZMAC55-70AAV 54.8 70.2 135.0 6MP High speeds / deep hole drilling
IT40-Q26-95 + ~ + 26-ZMAC55-70V IT40 IT40-Q26-95 ~ 26-ZMAC55-70V 54.8 70.2 135.0 6MP Finishing
IT40-Q26-95 + ~ + 26-ZMAC55R-70AAV IT40 IT40-Q26-95 ~ 26-ZMAC55R-70AAV 54.8 70.2 135.0 CC06 High speeds / deep hole drilling
IT40-Q26-95 + ~ + 26-ZMAC55R-70V IT40 IT40-Q26-95 ~ 26-ZMAC55R-70V 54.8 70.2 135.0 CC06 Finishing
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 195.0 6MP High speeds / deep hole drilling
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55-70V 54.8 70.2 195.0 6MP Finishing
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55R-70AAV 54.8 70.2 195.0 CC06 High speeds / deep hole drilling
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V IT40 IT40-Q26-95 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 195.0 CC06 Finishing
IT40-Q34-110 + ~ + 34-ZMAC70-70AAV IT40 IT40-Q34-110 ~ 34-ZMAC70-70AAV 69.8 85.2 180.0 6MP High speeds / deep hole drilling
IT40-Q34-110 + ~ + 34-ZMAC70-70V IT40 IT40-Q34-110 ~ 34-ZMAC70-70V 69.8 85.2 180.0 6MP Finishing
IT40-Q34-110 + ~ + 34-ZMAC70R-70AAV IT40 IT40-Q34-110 ~ 34-ZMAC70R-70AAV 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
IT40-Q34-110 + ~ + 34-ZMAC70R-70V IT40 IT40-Q34-110 ~ 34-ZMAC70R-70V 69.8 85.2 180.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70-70AAV IT40 IT40-Q34-95 ~ 34-ZMAC70-70AAV 69.8 85.2 165.0 6MP High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70-70V IT40 IT40-Q34-95 ~ 34-ZMAC70-70V 69.8 85.2 165.0 6MP Finishing
IT40-Q34-95 + ~ + 34-ZMAC70R-70AAV IT40 IT40-Q34-95 ~ 34-ZMAC70R-70AAV 69.8 85.2 165.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + ~ + 34-ZMAC70R-70V IT40 IT40-Q34-95 ~ 34-ZMAC70R-70V 69.8 85.2 165.0 CC08 Finishing
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70-70AAV 69.8 85.2 225.0 6MP High speeds / deep hole drilling
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70-70V 69.8 85.2 225.0 6MP Finishing
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70R-70AAV 69.8 85.2 225.0 CC08 High speeds / deep hole drilling
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V IT40 IT40-Q34-95 SP34-34-95 34-ZMAC70R-70V 69.8 85.2 225.0 CC08 Finishing
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV IT50 IT40-Q42-125 SP42-42-90 42-ZMAC85-100AAV 84.8 100.2 272.0 6MP High speeds / deep hole drilling
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85-100V 84.8 100.2 272.0 6MP Finishing
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85R-100AAV 84.8 100.2 272.0 CC08 High speeds / deep hole drilling
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V IT40 IT40-Q42-125 SP42-42-90 42-ZMAC85R-100V 84.8 100.2 272.0 CC08 Finishing
IT40-Q42-95 + ~ + 42-ZMAC85-100AAV IT40 IT40-Q42-95 ~ 42-ZMAC85-100AAV 84.8 100.2 195.0 6MP High speeds / deep hole drilling
IT40-Q42-95 + ~ + 42-ZMAC85-100V IT40 IT40-Q42-95 ~ 42-ZMAC85-100V 84.8 100.2 195.0 6MP Finishing
IT40-Q42-95 + ~ + 42-ZMAC85R-100AAV IT40 IT40-Q42-95 ~ 42-ZMAC85R-100AAV 84.8 100.2 195.0 CC08 High speeds / deep hole drilling
IT40-Q9-80 + ~ + 9-ZMAC20-40AAV IT40 IT40-Q9-80 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
IT40-Q9-80 + ~ + 9-ZMAC20-40V IT40 IT40-Q9-80 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV IT40 IT40-Q9-80 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V IT40 IT40-Q9-80 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
IT40-Q9-95N + ~ + 9-ZMAC20-40AAV IT40 IT40-Q9-95N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
IT40-Q9-95N + ~ + 9-ZMAC20-40V IT40 IT40-Q9-95N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
IT50-Q12-125 + ~ + 12-ZMAC25-40AAV IT50 IT50-Q12-125 ~ 12-ZMAC25-40AAV 24.8 32.2 90.0 3MP High speeds / deep hole drilling
IT50-Q12-125 + ~ + 12-ZMAC25-40V IT50 IT50-Q12-125 IT50-Q12-125 12-ZMAC25-40V 24.8 32.2 90.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC16-45AAV IT50 IT50-Q12-95 ~ 12-ZMAC16-45AAV 15.9 20.2 38.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC16-45V IT50 IT50-Q12-95 ~ 12-ZMAC16-45V 15.9 20.2 38.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC16-55AAV IT50 IT50-Q12-95 ~ 12-ZMAC16-55AAV 15.9 20.2 48.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC16-55V IT50 IT50-Q12-95 ~ 12-ZMAC16-55V 15.9 20.2 48.0 3MP Finishing
IT50-Q12-95 + ~ + 12-ZMAC25-40AAV IT50 IT50-Q12-95 ~ 12-ZMAC25-40AAV 24.8 32.2 52.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + ~ + 12-ZMAC25-40V IT50 IT50-Q12-95 ~ 12-ZMAC25-40V 24.8 32.2 52.0 3MP Finishing
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV IT50 IT50-Q12-95 SP12-12-45 12-ZMAC25-40AAV 24.8 32.2 97.0 3MP High speeds / deep hole drilling
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V IT50 IT50-Q12-95 SP12-12-45 12-ZMAC25-40V 24.8 32.2 97.0 3MP Finishing
IT50-Q16-125N + ~ + 16-ZMAC32-55AAV IT50 IT50-Q16-125N ~ 16-ZMAC32-55AAV 31.8 42.2 77.0 4MP High speeds / deep hole drilling
IT50-Q16-125N + ~ + 16-ZMAC32-55V IT50 IT50-Q16-125N ~ 16-ZMAC32-55V 31.8 42.2 77.0 4MP Finishing
IT50-Q16-125N + ~ + 16-ZMAC32R-55AAV IT50 IT50-Q16-125N ~ 16-ZMAC32R-55AAV 31.8 42.2 77.0 CC06 High speeds / deep hole drilling
IT50-Q16-125N + ~ + 16-ZMAC32R-55V IT50 IT50-Q16-125N ~ 16-ZMAC32R-55V 31.8 42.2 77.0 CC06 Finishing
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32-55AAV 31.8 42.2 122.0 4MP High speeds / deep hole drilling
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32-55V 31.8 42.2 122.0 4MP Finishing
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V IT50 IT50-Q16-125N SP16-16-45 16-ZMAC32R-55V 31.8 42.2 122.0 CC06 Finishing
IT50-Q16-155 + ~ + 16-ZMAC32-55AAV IT50 IT50-Q16-155 ~ 16-ZMAC32-55AAV 31.8 42.2 110.0 4MP High speeds / deep hole drilling
IT50-Q16-155 + ~ + 16-ZMAC32-55V IT50 IT50-Q16-155 ~ 16-ZMAC32-55V 31.8 42.2 110.0 4MP Finishing
IT50-Q16-155 + ~ + 16-ZMAC32R-55AAV IT50 IT50-Q16-155 ~ 16-ZMAC32R-55AAV 31.8 42.2 110.0 CC06 High speeds / deep hole drilling
IT50-Q16-155 + ~ + 16-ZMAC32R-55V IT50 IT50-Q16-155 ~ 16-ZMAC32R-55V 31.8 42.2 110.0 CC06 Finishing
IT50-Q20-110 + ~ + 20-ZMAC42-70AAV IT50 IT50-Q20-110 ~ 20-ZMAC42-70AAV 41.8 55.2 97.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + ~ + 20-ZMAC42-70V IT50 IT50-Q20-110 ~ 20-ZMAC42-70V 41.8 55.2 97.0 6MP Finishing
IT50-Q20-110 + ~ + 20-ZMAC42R-70V IT50 IT50-Q20-110 ~ 20-ZMAC42R-70V 41.8 55.2 97.0 CC06 Finishing
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42-70AAV 41.8 55.2 142.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42-70V 41.8 55.2 142.0 6MP Finishing
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V IT50 IT50-Q20-110 SP20-20-45 20-ZMAC42R-70V 41.8 55.2 142.0 CC06 Finishing
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42-70AAV 41.8 55.2 157.0 6MP High speeds / deep hole drilling
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42-70V 41.8 55.2 157.0 6MP Finishing
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V IT50 IT50-Q20-110 SP20-20-60 20-ZMAC42R-70V 41.8 55.2 157.0 CC06 Finishing
IT50-Q20-125 + ~ + 20-ZMAC42-70AAV IT50 IT50-Q20-125 ~ 20-ZMAC42-70AAV 41.8 55.2 130.0 6MP High speeds / deep hole drilling
IT50-Q20-125 + ~ + 20-ZMAC42-70V IT50 IT50-Q20-125 ~ 20-ZMAC42-70V 41.8 55.2 130.0 6MP Finishing
IT50-Q20-125 + ~ + 20-ZMAC42R-70V IT50 IT50-Q20-125 ~ 20-ZMAC42R-70V 41.8 55.2 130.0 CC06 Finishing
IT50-Q26-140 + ~ + 26-ZMAC55-70AAV IT50 IT50-Q26-140 ~ 26-ZMAC55-70AAV 54.8 70.2 117.0 6MP High speeds / deep hole drilling
IT50-Q26-140 + ~ + 26-ZMAC55-70V IT50 IT50-Q26-140 ~ 26-ZMAC55-70V 54.8 70.2 117.0 6MP Finishing
IT50-Q26-140 + ~ + 26-ZMAC55R-70V IT50 IT50-Q26-140 ~ 26-ZMAC55R-70V 54.8 70.2 117.0 CC06 Finishing
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55-70AAV 54.8 70.2 177.0 6MP High speeds / deep hole drilling
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55-70V 54.8 70.2 177.0 6MP Finishing
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V IT50 IT50-Q26-140 SP26-26-60 26-ZMAC55R-70V 54.8 70.2 177.0 CC06 Finishing
IT50-Q26-170N + ~ + 26-ZMAC55-70AAV IT50 IT50-Q26-170N ~ 26-ZMAC55-70AAV 54.8 70.2 182.0 6MP High speeds / deep hole drilling
IT50-Q26-170N + ~ + 26-ZMAC55-70V IT50 IT50-Q26-170N ~ 26-ZMAC55-70V 54.8 70.2 182.0 6MP Finishing
IT50-Q26-170N + ~ + 26-ZMAC55R-70V IT50 IT50-Q26-170N ~ 26-ZMAC55R-70V 54.8 70.2 182.0 CC06 Finishing
IT50-Q34-170 + ~ + 34-ZMAC70-70AAV IT50 IT50-Q34-170 ~ 34-ZMAC70-70AAV 69.8 85.2 190.0 6MP High speeds / deep hole drilling
IT50-Q34-170 + ~ + 34-ZMAC70-70V IT50 IT50-Q34-170 ~ 34-ZMAC70-70V 69.8 85.2 190.0 6MP Finishing
IT50-Q34-170 + ~ + 34-ZMAC70R-70V IT50 IT50-Q34-170 ~ 34-ZMAC70R-70V 69.8 85.2 190.0 CC08 Finishing
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70-70AAV 69.8 85.2 250.0 6MP High speeds / deep hole drilling
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70-70V 69.8 85.2 250.0 6MP Finishing
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70R-70AAV 69.8 85.2 250.0 CC08 High speeds / deep hole drilling
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V IT50 IT50-Q34-170 SP34-34-60 34-ZMAC70R-70V 69.8 85.2 250.0 CC08 Finishing
IT50-Q34-200 + ~ + 34-ZMAC70-70AAV IT50 IT50-Q34-200 ~ 34-ZMAC70-70AAV 69.8 85.2 220.0 6MP High speeds / deep hole drilling
IT50-Q34-200 + ~ + 34-ZMAC70-70V IT50 IT50-Q34-200 ~ 34-ZMAC70-70V 69.8 85.2 220.0 6MP Finishing
IT50-Q34-200 + ~ + 34-ZMAC70R-70AAV IT50 IT50-Q34-200 ~ 34-ZMAC70R-70AAV 69.8 85.2 220.0 CC08 High speeds / deep hole drilling
IT50-Q34-200 + ~ + 34-ZMAC70R-70V IT50 IT50-Q34-200 ~ 34-ZMAC70R-70V 69.8 85.2 220.0 CC08 Finishing
IT50-Q42-125 + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC100-100AAV 99.5 140.5 225.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC100-100V IT50 IT50-Q42-125 ~ 42-ZMAC100-100V 99.5 140.5 225.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC100R-100AAV 99.5 140.5 225.0 CC12 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-125 ~ 42-ZMAC100R-100V 99.5 140.5 225.0 CC12 Finishing
IT50-Q42-125 + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC140-100AAV 139.5 180.5 225.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC140-100V IT50 IT50-Q42-125 ~ 42-ZMAC140-100V 139.5 180.5 225.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC140R-100AAV 139.5 180.5 225.0 CC12 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC140R-100V IT50 IT50-Q42-125 ~ 42-ZMAC140R-100V 139.5 180.5 225.0 CC12 Finishing
IT50-Q42-125 + ~ + 42-ZMAC85-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC85-100AAV 84.8 100.2 182.0 6MP High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC85-100V IT50 IT50-Q42-125 ~ 42-ZMAC85-100V 84.8 100.2 182.0 6MP Finishing
IT50-Q42-125 + ~ + 42-ZMAC85R-100AAV IT50 IT50-Q42-125 ~ 42-ZMAC85R-100AAV 84.8 100.2 182.0 CC08 High speeds / deep hole drilling
IT50-Q42-125 + ~ + 42-ZMAC85R-100V IT50 IT50-Q42-125 ~ 42-ZMAC85R-100V 84.8 100.2 182.0 CC08 Finishing
IT50-Q42-190 + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC100-100AAV 99.5 140.5 290.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC100-100V IT50 IT50-Q42-190 ~ 42-ZMAC100-100V 99.5 140.5 290.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC100R-100AAV 99.5 140.5 290.0 CC12 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-190 ~ 42-ZMAC100R-100V 99.5 140.5 290.0 CC12 Finishing
IT50-Q42-190 + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC140-100AAV 139.5 180.5 290.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC140-100V IT50 IT50-Q42-190 ~ 42-ZMAC140-100V 139.5 180.5 290.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC140R-100AAV 139.5 180.5 290.0 CC12 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC85-100AAV 84.8 100.2 247.0 6MP High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85-100V IT50 IT50-Q42-190 ~ 42-ZMAC85-100V 84.8 100.2 247.0 6MP Finishing
IT50-Q42-190 + ~ + 42-ZMAC85R-100AAV IT50 IT50-Q42-190 ~ 42-ZMAC85R-100AAV 84.8 100.2 247.0 CC08 High speeds / deep hole drilling
IT50-Q42-190 + ~ + 42-ZMAC85R-100V IT50 IT50-Q42-190 ~ 42-ZMAC85R-100V 84.8 100.2 247.0 CC08 Finishing
IT50-Q42-225A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC100-100AAV 99.5 140.5 325.0 6MP High speeds / deep hole drilling
IT50-Q42-225A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-225A ~ 42-ZMAC100-100V 99.5 140.5 325.0 6MP Finishing
IT50-Q42-225A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-225A ~ 42-ZMAC100R-100V 99.5 140.5 325.0 CC12 Finishing
IT50-Q42-225A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC140-100AAV 139.5 180.5 325.0 6MP High speeds / deep hole drilling
IT50-Q42-225A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-225A ~ 42-ZMAC140-100V 139.5 180.5 325.0 6MP Finishing
IT50-Q42-225A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-225A ~ 42-ZMAC140R-100AAV 139.5 180.5 325.0 CC12 High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC100-100AAV 99.5 140.5 375.0 6MP High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-275A ~ 42-ZMAC100-100V 99.5 140.5 375.0 6MP Schlichten
IT50-Q42-275A + ~ + 42-ZMAC100R-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC100R-100AAV 99.5 140.5 375.0 CC12 High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-275A ~ 42-ZMAC100R-100V 99.5 140.5 375.0 CC12 Finishing
IT50-Q42-275A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC140-100AAV 139.5 180.5 375.0 6MP High speeds / deep hole drilling
IT50-Q42-275A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-275A ~ 42-ZMAC140-100V 139.5 180.5 375.0 6MP Finishing
IT50-Q42-275A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-275A ~ 42-ZMAC140R-100AAV 139.5 180.5 375.0 CC12 High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC100-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC100-100AAV 99.5 140.5 425.0 6MP High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC100-100V IT50 IT50-Q42-325A ~ 42-ZMAC100-100V 99.5 140.5 425.0 6MP Finishing
IT50-Q42-325A + ~ + 42-ZMAC100R-100V IT50 IT50-Q42-325A ~ 42-ZMAC100R-100V 99.5 140.5 425.0 CC12 Finishing
IT50-Q42-325A + ~ + 42-ZMAC140-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC140-100AAV 139.5 180.5 425.0 6MP High speeds / deep hole drilling
IT50-Q42-325A + ~ + 42-ZMAC140-100V IT50 IT50-Q42-325A ~ 42-ZMAC140-100V 139.5 180.5 425.0 6MP Finishing
IT50-Q42-325A + ~ + 42-ZMAC140R-100AAV IT50 IT50-Q42-325A ~ 42-ZMAC140R-100AAV 139.5 180.5 425.0 CC12 High speeds / deep hole drilling
IT50-Q9-110 + ~ + 9-ZMAC20-40AAV IT50 IT50-Q9-110 ~ 9-ZMAC20-40AAV 19.8 25.2 45.0 3MP High speeds / deep hole drilling
IT50-Q9-110 + ~ + 9-ZMAC20-40V IT50 IT50-Q9-110 ~ 9-ZMAC20-40V 19.8 25.2 45.0 3MP Finishing
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV IT50 IT50-Q9-110 SP9-9-30 9-ZMAC20-40AAV 19.8 25.2 75.0 3MP High speeds / deep hole drilling
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V IT50 IT50-Q9-110 SP9-9-30 9-ZMAC20-40V 19.8 25.2 75.0 3MP Finishing
IT50-Q9-125N + ~ + 9-ZMAC20-40AAV IT50 IT50-Q9-125N ~ 9-ZMAC20-40AAV 19.8 25.2 67.0 3MP High speeds / deep hole drilling
IT50-Q9-125N + ~ + 9-ZMAC20-40V IT50 IT50-Q9-125N ~ 9-ZMAC20-40V 19.8 25.2 67.0 3MP Finishing
